Twin Cam Ignition & Standalone Engine Harness

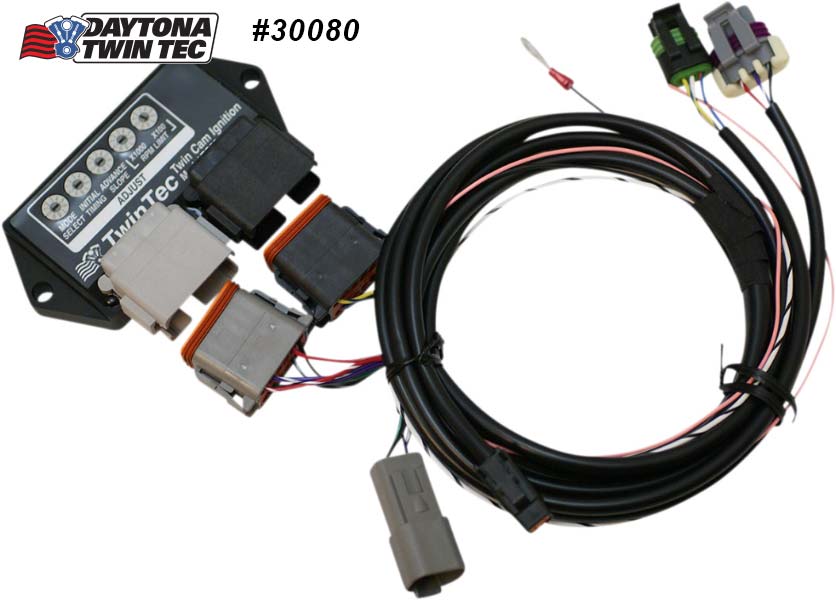

• Daytona Twin Tec #30080- Includes #1008 TC88 Race Ignition Module and #1008-HH Wiring Harness – Race Module with more timing adjustment  – Stock Replacement  for 1999-2003 Twin Cams.

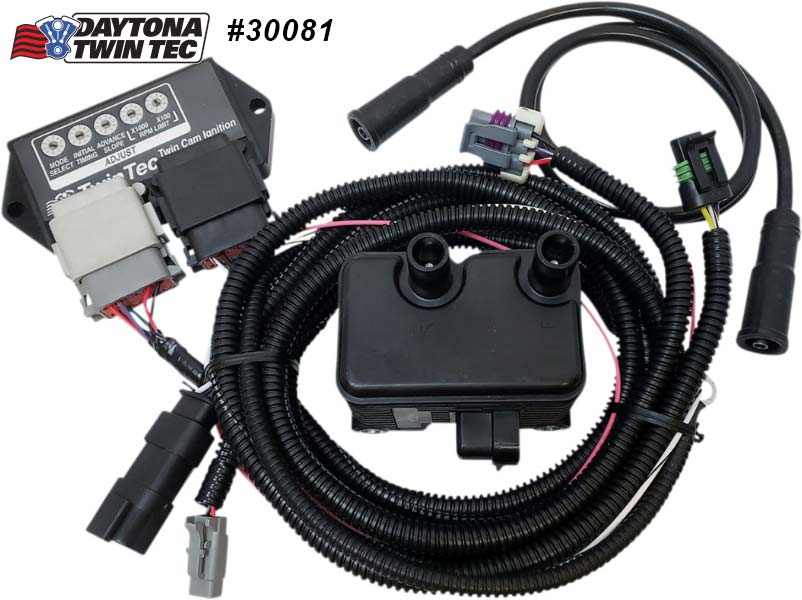

• Daytona Twin Tec #30081- Includes #1008 TC88 Race Ignition Module, #1008-HH Wiring Harness, #2008 Coil, #3002 Plug Wires – Race Module with more timing adjustment

• Can be used on all twin cams 1999-17 when converting to carb. Must use 1999-06 Coil #31655-99 or Screamin’ Eagle coil 31704-99.

Choose #30081 Kit with correct coil and Cut to length spark plug wires.

· Plug and Play for Carb Twin Cam Engines

· Easy to access and adjust the five rotary config switches

· Supports all OE sensors, including the theft/security module

· Wide timing advance adjustment range accommodates stock to highly modified engines.

· Digitally set RPM limit (100 RPM steps)

· Selectable multi-spark mode for quick starting and smooth cruise

· Coil outputs protected against short circuits

· Optional USB interface and software for programming a custom advance curve

· Billet aluminum housing with black anodized finish

Twin Cam engine utilize a non-adjustable crankshaft position sensor, this means that mechanical timing adjustments are no longer possible. The 1008/TC88 allows you to adjust your initial timing +-4 degree using a rotary switch. A second switch sets the advance curve slope. The combination of these two switches allows the user to optimize the timing advance for a wide range of applications – from stock to highly modified engines. For details, including advance curves, please download you can download the installation instructions from our website.

H-D® motorcycles with the Twin Cam engine have a check engine warning LED on the instrument cluster. The 1008 / TC88 Ignition Module communicates basic diagnostic information by blinking codes on the check engine LED. This eliminates the need for an expensive scan tool. Typical diagnostic codes include failed sensors and/or low/high battery voltage.

You can adjust the slope and advance curve total using the switches on the unit or connect using our TC88 PC Link software and USB adapter pn 18014 to optimize and build your own timing advance for a wide range of applications – stock to highly modified engines. For details, including advance curves, download the installation instructions (below). Note: USB interface 18014 plugs into the existing H-D diagnostic connector on the OEM motorcycle wiring harness.

Quick Start Guide 1008 TC88 Download

Full Instructions 1008 TC88 Download

TC88 PCLink Software Download

USB Driver Download

TC88 PC Link Instructions

Twin Cam – TC88 (1999-2003) Ignition FAQ

1008-T Two Step Stage Tech Note
